- Size: 41m3
- Place of Origin: SHANDONG
- Brand Name: LONGYE
- Model Number: SLY600
- Weight: 6700.000 kg

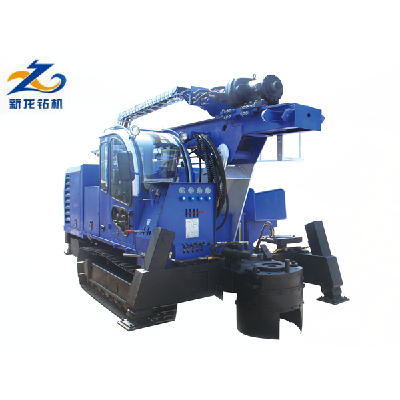

SLY600 track-type water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular,it is use for drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
Main technical parameters
Hole diameter(mm) | 115-300 |
Hole depth(m) | 320 |
Dimensions (L*H*W)(mm) | 6300x2320x2780 |
Working Pressure(Mpa) | 1.6-3.0 |
Air Consumption(m3/min) | 20-40 |
Drill pipe length(m) | 3 |
Drill pipe diameter(mm) | 89 |
Grade ability(。) | 30 |
Footage efficiency(m/h) | 5-30 |
Travelling speed(Km/h) | 0-2.5 |
Total weight(t) | 9.8 |
Axle pressure(N) | 57000 |
Lifting power(N) | 82000 |
Rotary torque(Nm) | 5200 |
Rotary speed | 0-130 |
Host Power(KW) | 118 |
