- Size: 47m3
- Place of Origin: SHANDONG
- Brand Name: LONGYE
- Model Number: SL1100
- Weight: 1500.000 kg

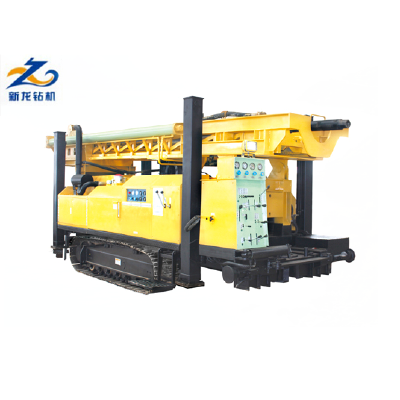

SLY600 track-type water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular,it is use for drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
The host is equipped with a six cylinder engine power ,which can guarantee the output of strong power in the drilling ,according to the actual demand the hydraulic system gets optimization design and improvement. To ensure the reasonable power distribution effectively, meet the drilling conditions.
Main technical parameters
Working Pressure(Mpa) | 1.05---6.45Mpa |
Air consumption(m3/min) | 16---96.4m3/min |
Hole diameter(mm) | 140---400mm |
Hole depth(m) | 700m |
Drill pipe diameter(mm) | 89/108/127 mm |
Drill pipe length(m) | 4500mm |
Axial pressure | 12T |
Lifting force | 60T |
Slow lift speed | 2M/Min |
Slow propel speed | 0.9M/Min |
Fast lift speed | 18M/Min |
Fast forward speed | 37M/Min |
Rotary torque | 11000N.m |
Rotational speed | 0---100r/min |
winch Hoisting force | 2.5T;Wire rope diameter 12mm |
Mud pump flow | 600L/ Min(select) |
Centrifugal pump flow | 1300L/ Min(select) |
Generator | 24KW/380V |
Single climbing ability | 15° |
Weight | 15T |
Dimensions | 7302X2200X2900 |
