- Size: 29m3
- Place of Origin: SHANDONG
- Brand Name: LONGYE
- Model Number: G150YF
- Weight: 6300.000 kg

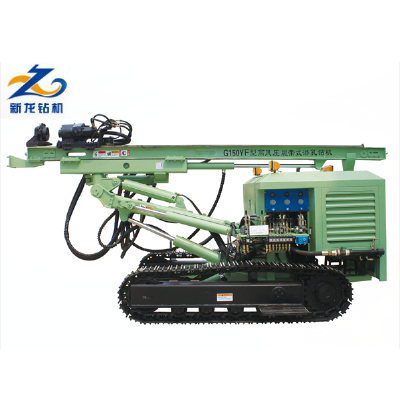

CTQ-G150YF High Air Pressure DTH Drill Crawler open with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, vehicle movement organizations from the hydraulic system to achieve, and only washed the source of the wind machine consumption, resulting in Air Machine Matching saves in a complete set of equipment procurement costs. Rotary organizations to adopt a new dual-motor turret to make it to the open-air blast drilling operations when drilling large holes to maintain a strong rotary torque output, dragging air compressor, it has the mobile and flexible and climbing ability, suitable for rugged venue operations, perforation shift convenience features. Hole diameter 105-165mm, with a piercing, high efficiency, maintenance is simple, high reliability. This type of the machine is optimism choice in opening are mining hydro-power plant, electric power stations,and road building for exploration the stone.
Main technical parameters
Working pressure (Mpa) | 1.2-2.46 |
Air consumption (m3/min) | 11-25 |
Drilling diameter (mm) | 105-165 |
Drilling depth (m) | level 60m、down 30m |
Once promotion distance(mm) | 3000 |
Drill rod diameter (mm) | 76 |
Skid compensation(mm) | 1200 |
Maximum lift force(N) | 26000 |
Guide shell lutting(。) | up and down total 100 |
Guide shell swing angle(。) | Left and right total 100 |
Boom lift angle(。) | up and down total 70 |
Boom swing angle(。) | Left 45、right 45 |
Climb ability(。) | 30 |
Chassis ground clearance(mm) | 300 |
Travelling speed (Km/h) | 0-2.5 |
Rotary speed(r/min) | 0-90 |
Rotary torque(N.m) | 3000 |
Host Power(Km) | 56 |
For rock | f=6-20 |
Total Weight(Kg) | 6300 |
Dimension (L * W * H)mm | 5800*2070*2400 |
