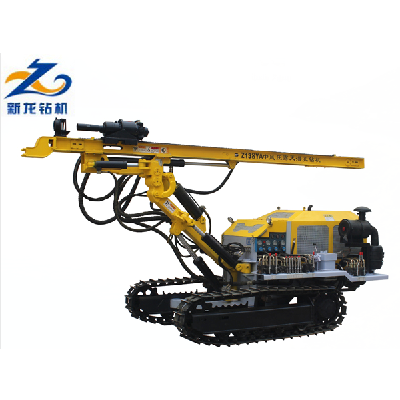

LONGYE Crawler Hydraulic Drilling Rig CTQ-Z138YA

LONGYE Crawler Hydraulic Drilling Rig CTQ-Z138YA

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: TIANJIN QINGDAO
  • Payment Terms: L/C,T/T,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-11-25
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  25m3
  • Place of Origin:  SHANDONG
  • Brand Name:  LONGYE
  • Model Number:  CTQ-Z138YA
  • Weight: 4170.000 kg

CTQ-Z138YA type crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift hole easy The drilling rig compact structure, while promoting a retractable sliding shelf compensation, drilling when the sliding frame support on the ground, drilling and good stability. Use Z138YA rig reliable Chazzan efficient drilling in hard rock drilling rig as fast as 2 times the low air pressure is the construction unit cost efficiency gains strong support.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.

            Main technical parameters

Working pressure    (Mpa)

0.7-1.6

Air consumption(m3/min)

10-15

Drilling diameter    (mm)

90-130

Drilling depth(m)

level 40 down 30

Once promotion distance(mm)

3000

Drill rod diameter(mm)

60

Skid compensation(mm)

900

Maximum lift force(N)

24800

Skid pitch()

up and down   total 45

Swinging angle of skid()

Left 40 right 30

Boom swing angle()

Left 30 right 40

Boom Pitch()

up and down total 60

Climb ability

30

Chassis ground clearance(mm)

260

Travelling  speed(Km/h)

0-2.5

Rotation speed(r/min)

0-110

Rotary torque(N.m)

2000

Host Power(KW)

45

For rock

f=6-20

Total Weight(Kg)

4170

Dimension (L * W * H)

5200*2030*2300


  • Size:  25m3
  • Place of Origin:  SHANDONG
  • Brand Name:  LONGYE
  • Model Number:  CTQ-Z138YA
  • Weight: 4170.000 kg
