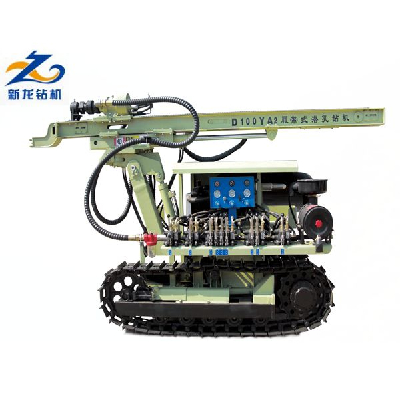

LONGYE Crawler Hydraulic Drilling Rig CTQ-D100YA2

LONGYE Crawler Hydraulic Drilling Rig CTQ-D100YA2

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: TIANJIN QINGDAO
  • Payment Terms: L/C,T/T,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-11-25
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  17m3
  • Place of Origin:  SHANDONG
  • Brand Name:  LONGYE
  • Model Number:  CTQ-D100YA2
  • Weight: 2800.000 kg

CTQ-D100YA2 crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift convenient hole, the drilling rig structure, a compact, the smallest turning radius of only 2.8m, while promoting a retractable sliding shelf compensation. During drillingthe slide-skid are support direct to the ground to ensure the stability during operation.

The drilling rig is mainly suitable for open mining, hydro-power plants, electric power stations, road building and other rock drilling blasting holes.


            Main technical parameters

Total WeightT

2.8

Drilling diametermm

90--130

Dimension (L * W * H)(mm)

4100*2030*2020

Drilling depth(m)

30

Travelling  speedkm/h

2

Once promotion distancem

2

Climb ability()

30

Working pressureMPa

0.7-1.4

Chassis ground clearancemm

250

Air consumption(m3/min)

7-15

Skid pitch()

up and down 100

Host Powerkw

33kw

Sliding tilt swing()

L35R10

For rock

F=6-20

Skid compensationmm

900


  • Size:  17m3
  • Place of Origin:  SHANDONG
  • Brand Name:  LONGYE
  • Model Number:  CTQ-D100YA2
  • Weight: 2800.000 kg
