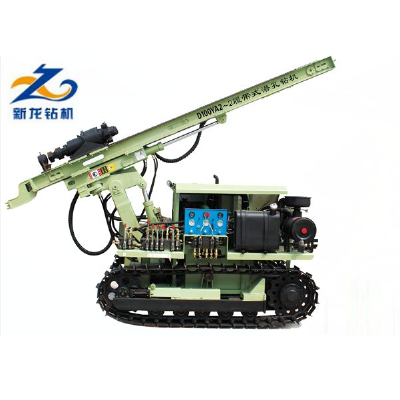

LONGYE Crawler Hydraulic Drilling Rig CTQ-D100YA2-2

LONGYE Crawler Hydraulic Drilling Rig CTQ-D100YA2-2

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: TIANJIN QINGDAO
  • Payment Terms: L/C,T/T,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-11-25
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  17m3
  • Place of Origin:  SHANDONG
  • Brand Name:  LONGYE
  • Model Number:  CTQ-D100YA2-2
  • Weight: 2800.000 kg

CTQ-D100YA2-2 crawler hydraulic drilling rig, adopt new hydraulic rotary motor, increase the rotation gearbox with high speed, torque, and low failure rate. Low air consumption of the rig, the shift hole becomes convenient, use air filter and oil filter, reduce engine wear, thereby increasing the life of the diesel engine. The rig structure is compact, the minimum radius of gyration is 2.8m, while advancing the skid compensation function, when drilling the skid support on the ground, and hole have good stability.

The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.


            Main technical parameters

Total WeightT

2.8

Drilling diametermm

90--130

Dimension (L * W * H)mm

4100x2030x2020

Drilling depthm

30

Travelling  speedkm/h

2

Once promotion distancem

2

Grade ability(°)

30

Working pressureMPa

0.7-1.4

Chassis ground clearancemm

260

Air consumption(m3/min)

7-15

Skid pitch()

up and down 100

Host Power(kw)

33kw

Sliding tilt swing()

L35R10

For rock

F=6-20

Skid compensationmm

900


  • Size:  17m3
  • Place of Origin:  SHANDONG
  • Brand Name:  LONGYE
  • Model Number:  CTQ-D100YA2-2
  • Weight: 2800.000 kg
