- Size: 17m3
- Place of Origin: SHANDONG
- Brand Name: LONGYE

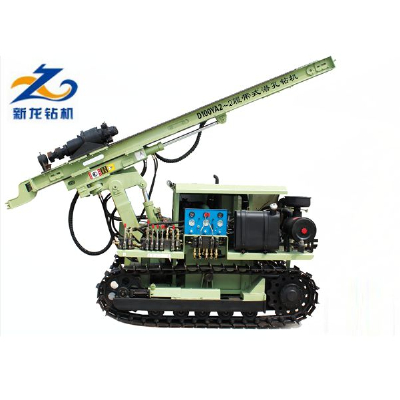

- Model Number: CTQ-D100YA2
- Weight: 2800.000 kg
Main technical parameters
Total Weight( T ) | 2.8 |
Drilling diameter( mm ) | 90--130 |
Dimension (L * W * H)(mm) | 4100*2030*2020 |
Drilling depth(m) | 30 |
Travelling speed( km/h ) | 2 |
Once promotion distance( m ) | 2 |
Climb ability( 。 ) | 30 |
Working pressure( MPa ) | 0.7-1.4 |
Chassis ground clearance( mm ) | 250 |
Air consumption(m3/min) | 7-15 |
Skid pitch( 。 ) | up and down 100 |
Host Power( kw ) | 33kw |
Sliding tilt swing( 。 ) | L35、 R10 |
For rock | F=6-20 |
Skid compensation( mm ) | 900 |
